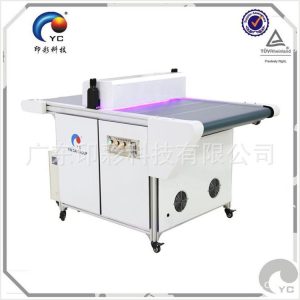

■設備型號:4022-30
■適用范圍:紫外線UV油墨光固化、紫外線UV膠水固化、紫外線上光油固化與木地板,木門,傢私的UV淋涂、UV滾涂、UV上光配套,UV光固化干燥,或單獨使用。
■性能特點:寬幅面,載重能力強,實用.
UV燈布置:上頂燈雙燈燈布置;
UV燈的調整:每一支燈高度、角度單獨調整;
UV燈采用聚光型設計,固化均勻;
強制風冷,確保UV室溫度適宜;
UV燈的更換采用閉合門裝置,維護簡便。
■技術參數:
電源要求:單相三線220VAC(工頻交流) 50HZ(赫茲)
整機功率:約4.3KW(千瓦)
外形尺寸:1330 L(長)×520W(寬)×1480H(高) mm
輸送速度:0-30 m/min(米/分鐘)
輸送寬度:300mm(毫米)
網帶材料:鐵氟龍耐高溫網帶,配套無動力滾筒
冷卻方式:強制風冷
光源類型:高壓Hg汞燈
燈線功率:100w/cm
光源配置:2KW *2支。
燈管長度:400MM
光源壽命:按加速等效測試,平均大于1000(h)小時,光衰不低于80%。
主峰波長:365nm(納米)
典型特點:鋁制反射器,多角度固化,適合有一定厚度的產品
典型應用:紫外線UV家俱漆固化、紫外線上光油固化,適應于非防爆要求環境。
■應用實例:手機外殼的油墨,UV膠水固化等。
– equipment model:4022-30
Exergy applicable scope: ultraviolet UV light curing, UV glue UV curing, UV curing varnish and wooden floor, wooden doors, furniture of UV coating, UV roll coating, UV coating, UV curing and drying, or used alone.
– performance characteristics: wide format, strong load-carrying ability, practical.
UV lamp: lamp lamp lamp;
UV lamp adjustment: each lamp height, angle individually adjust;
UV lamp is designed, and the curing is uniform;
Forced air cooling, to ensure that the UV room temperature is appropriate;
The replacement of UV lamp adopts closed door device, which is simple and easy to maintain.
– Technical parameters:
Power requirements: single phase three line 220VAC (power frequency AC) 50HZ (Hz)
Power: about 4.3KW (kw)
Dimensions: 1330 L (long) x 520W (wide) x mm (high) 1480H
Conveyor speed: m/min 0-30 (M / min)
Conveyor width: 300mm (mm)
Belt material: Teflon high-temperature net belt, supporting power roller
Cooling method: forced air cooling
Light source: high pressure mercury lamp type Hg
Lamp power: 100w/cm
Source configuration: *2 2KW.
Tube length: 400MM
The life of the light source: according to the equivalent test, the average more than 1000 hours (H), attenuation of not less than 80%.
Peak wavelength: 365nm (nm)
Typical features: aluminum reflector, multi angle curing, suitable for a certain thickness of the product
Typical application: UV UV furniture paint curing, UV curing, adapted to the non explosion proof requirements.
– Application: mobile phone shell UV ink, glue curing etc..
30系列UV機規格參數表:
